Staircase

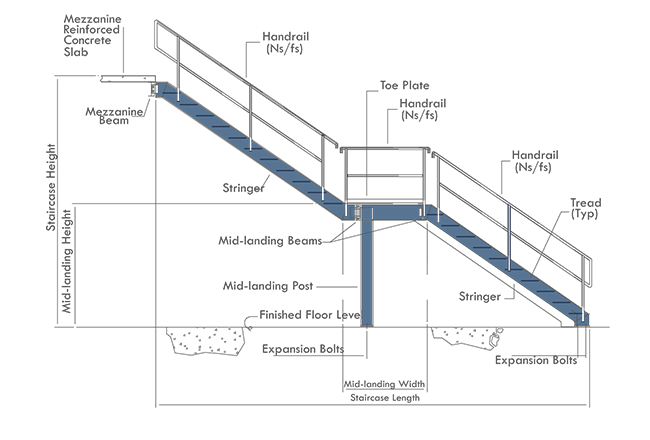

Elevation: Single Flight Staircase with Mid-Landing

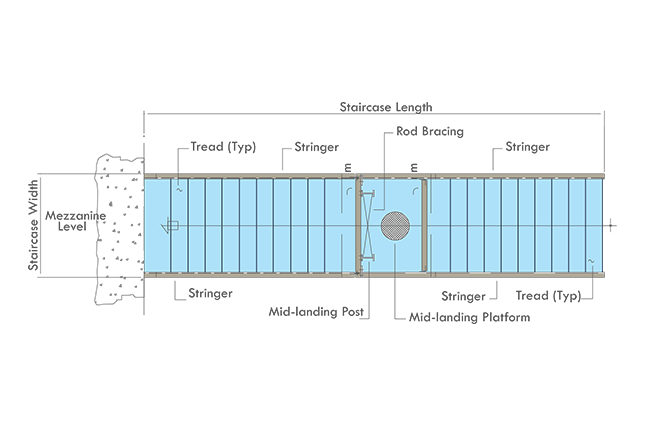

Plan: Single Flight Staircase with Mid-Landing

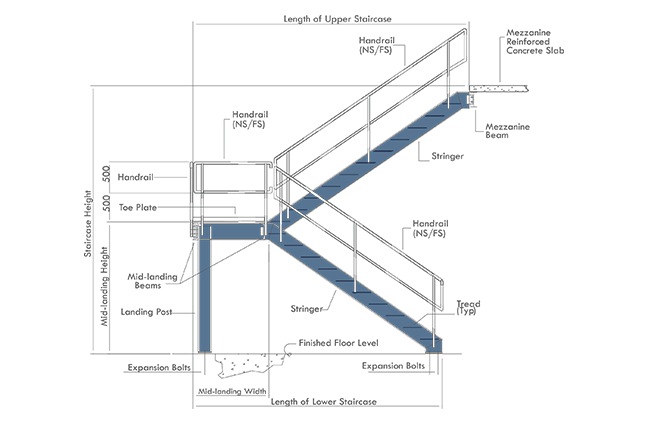

Elevation: Double Flight Staircase with Mid-Landing

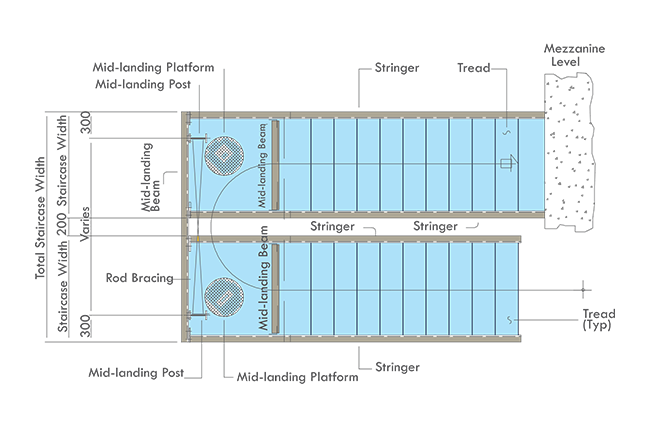

Plan: Double Flight Staircase with Mid-Landing

The standard mezzanine framing system consists of a steel deck support by joists into main mezzanine beams. If required by design loads, the main beams shall also be supported by intermediate columns. The top flange of the joists fit at same level of the top flange of the primary beams.

The embossments on the top and sides of the deck sheet ribs provide added grip and minimize slip by creating a bond with concrete as done with normal reinforcement.

It provides permanent formwork as well as positive reinforcement. No erection, removal, handling or storage of timber / steel formwork as in conventional concrete slab construction, saving valuable time. Clean, uniform and attractive ribbed underside (soft fit) for exposed situation reduces the cost of ceiling finishes. MS deck sheet is provided for suitable load on the floor and covered with form concrete.
